New Skyjack SJ4740 E Electric Scissor Lift MEWP – 13.69m Working Height
*New MEWP Price (No Discount)
New & Used MEWP Equipment Sales
We’re ready to help, what are you looking for? Raise a quote…

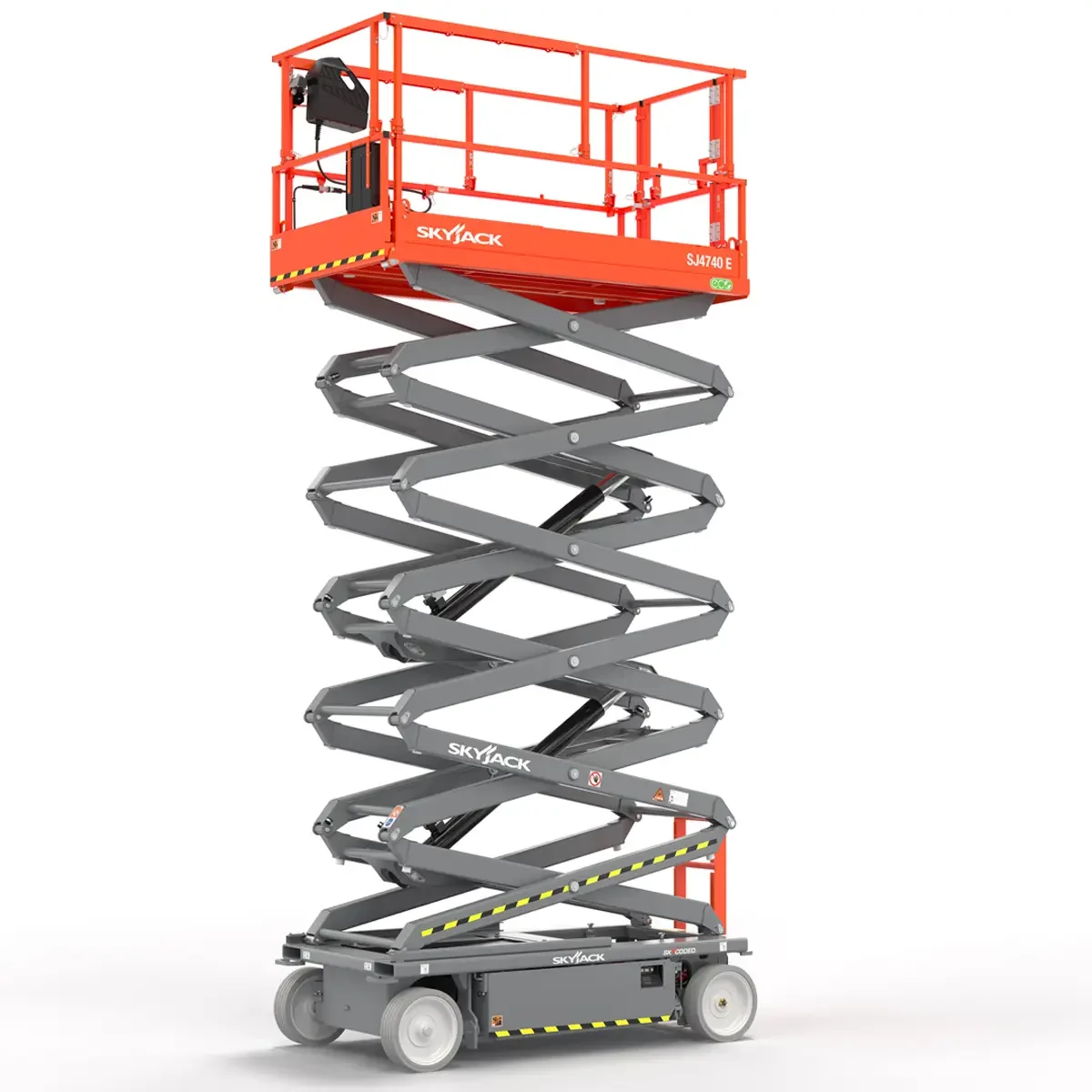

Buy New Skyjack SJ4740 E Electric Scissor Lift MEWP
Introducing the Skyjack SJ4740 E Electric Scissor Lift, a premier solution for elevated work requiring precision and reliability. This electric scissor lift is ideal for indoor tasks where manoeuvrability and safety are paramount.
Key Features:
- Impressive Reach: Achieve a working height of 13.69 metres (44 feet 11 inches) and a raised platform height of 11.86 metres (38 feet 11 inches), enabling access to elevated areas with ease.
- Compact Design: With an overall width of 1.20 metres (47 inches) and a stowed height of 2.53 metres (99.5 inches) with rails up (2.03 metres/79.8 inches with rails down), the SJ4740 E easily navigates through tight spaces.
- Robust Capacity: Supports an overall capacity of 349 kg (770 lbs), accommodating up to three operators. The main platform holds 229 kg (505 lbs), while the extension deck supports 120 kg (265 lbs).
- Extended Platform: Features a 0.91-metre (3-foot) roll-out extension deck, providing additional reach and flexibility for various tasks.
- Efficient Performance: With a lift time of 88 seconds (with rated load) and a lower time of 53 seconds, this scissor lift ensures optimal productivity on-site.
- Manoeuvrability: Boasts a tight turning radius of 0.79 metres (31 inches) inside and 2.78 metres (110 inches) outside, along with a maximum drive height at full elevation.
- Reliable Drive System: Delivers a drive speed of 3.2 km/h (2.0 mph) when stowed and 0.8 km/h (0.5 mph) when raised.
- Sturdy Build: Weighs 2,935 kg (6,470 lbs) and features solid, non-marking tyres to protect sensitive flooring.
The SJ4740 E Electric Scissor Lift is a versatile and reliable solution for indoor projects, offering impressive height, capacity and manoeuvrability. Designed with operator safety and efficiency in mind, it is ideal for environments such as warehouses, shopping centres and manufacturing facilities.
Personnel Capacity
Outdoor Rated
MEWP Service
MEWP Member
Standard Features
Drivable at full height ■ Variable speed, dual rear wheel electric drive ■ Dual holding brakes ■ SKYCODED™ Color coded and numbered wiring system ■ On-board visual interface with diagnostic capabilities ■ Shroud style, impact resistant composite control box with extended cable ■ Low battery indicator light on control box ■ Proportional controls for drive & lift functions ■ 3’ (0.90 m) Roll out extension deck ■ 24V DC Power source ■ 110V AC Outlet on platform with GFI ■ Low voltage battery protection ■ 25% Gradeability ■ Solid rubber, non-marking tires ■ Pothole protection system ■ Tilt alarm with drive & lift cut-out (3.5° x 1.5°) ■ All motion audible alarm ■ 28 mph (12.5 m/s) Wind rating to 24’ (7.3 m) ■ Lanyard attachment points ■ Operator horn ■ Forklift pockets and tie down / lift lugs ■ Overload sensing system ■ Fold down hinged railing system ■ Half height spring hinged entry gate ■ Telematics ready ■ 2-Year Gold Leaf Warranty (5-year structural warranty)
16% operational carbon saving compared to previous model . Up to 20% improvement in duty cycle . ZERO emissions . <70 dB inherently quiet machine operation (excl. alarms) . White noise/broadband alarms – optional . 90% recyclable (by weight) . 60% less hydraulic connections – reduces leak potential . ECOTRAY leak containment – optional . Bio-degradeable hydraulic oil – optional . Telematics – remote diagnostics reduces site visits (operational carbon foot print)
| Work Height | 44’ 11” (13.69 m) | |
| Raised Platform Height | 38’ 11” (11.86 m) | |
| Lowered Platform Height | 56” (1.41 m) | |
| Overall Width | 47” (1.20 m) | |
| Overall Length | 95.2” (2.41 m) | |
| Stowed Height (Rails Up) | 99.5” (2.53 m) | |
| Stowed Height (Rails Down) | 79.8” (2.03 m) | |
| Platform Width (Inside Dimension) | 42” (1.06 m) | |
| Platform Length (Inside Dimension) | 86” (2.19 m) | |
| Extension Deck (Roll Out) | 3’ (0.91 m) | |
| Ground Clearance | 0.5” (1.3 cm) | |
| Ground Clearance (raised) | 4.5” (11.4 cm) | |
| Wheelbase | 73” (1.85 m) | |
| Weight | 6,470 lbs (2,935 kg) | |
| Gradeability | 25% | |
| Turning Radius (Inside) | 31” (0.79 m) | |
| Turning Radius (Outside) | 110” (2.78 m) | |
| Lift Time (With Rated Load) | 88 sec | |
| Lower Time (With Rated Load) | 53 sec | |
| Drive Speed (Stowed) | 2.0 mph (3.2 km/h) | |
| Drive Speed (Raised) | 0.5 mph (0.8 km/h) | |
| Maximum Drive Height | Full Height | |
| Capacity (Overall) | 770 lbs (349 kg) | |
| Distributed Capacity (Main Platform) | 505 lbs (229 kg) | |
| Distributed Capacity (Extension Deck) | 265 lbs (120 kg) | |
| Local Floor Load (With Rated Load) | 139 psi (956 kPa) | |
| Overall Floor Load (With Rated Load) | 233 psf (1,137 kg/m2) | |
| Maximum # of Persons | 3 | |
| Wind Rating | 0 (Optional 1 up to 24’ (7.3 m)) | |
| Tire Type | Solid, N/M | |
| Tire Size | 16 x 5 x 12 |
Accessoryzers (Accessories)
Light duty pipe rack ■ Heavy duty pipe rack ■ Board carrier ■ Tool caddy ■ ECOTRAY leak containment system ■ Secondary Guarding Lift Enable (SGLE) ■ Perimeter lights (Cannot be combined with dual flashing lights)
Options
Flashing light ■ Dual flashing lights ■ White noise alarm ■ 250 Ah Batteries ■ AGM Batteries ■ Lockable swingout trays ■ EE Rating package (Cannot be combined with telematics keypad, 250 Ah or AGM batteries, single or dual flashing lights, AC power on platform, perimeter lights, white noise alarm or ECOTRAY) ■ Full height spring hinged entry gate ■ Bio oil ■ Non-destructive testing ■ ELEVATE telematics (1-year, 3-year or 5-year plans available) ■ Extended warranty (3-year or 5-year plans available)
Simply More
Get more done for less. Longer run time per charge and fewer lifetime charge cycles means less spend on batteries. Consistent power, traction and torque, with improved controllability and efficiency, deliver excellent all around job-site performance.
SKYCODED™
A proven and reliable control system, incorporating Skyjack’s color coded and numbered wiring system, make our machines the easiest to trouble shoot and repair which means easier maintenance and lowered costs.
SIMPLE AND RELIABLE
Quality and reliability are the hallmarks that have given Skyjack scissor lifts a solid reputation as the best and one in three scissor lifts sold worldwide is a Skyjack.
Over the years, our team has duplicated that simple reliability to boom lifts, telehandlers, and telematics.
SIMPLE AND RELIABLE SKYJACK MEWPS
Skyjack became an industry-leader by providing machine features that combine durability, quality, and serviceability. Our products use common components across all models to maintain a certain uniformity throughout our product line.
Keeping the design simple, and using intuitive design features help make Skyjack products some of the most sought after on the market.
