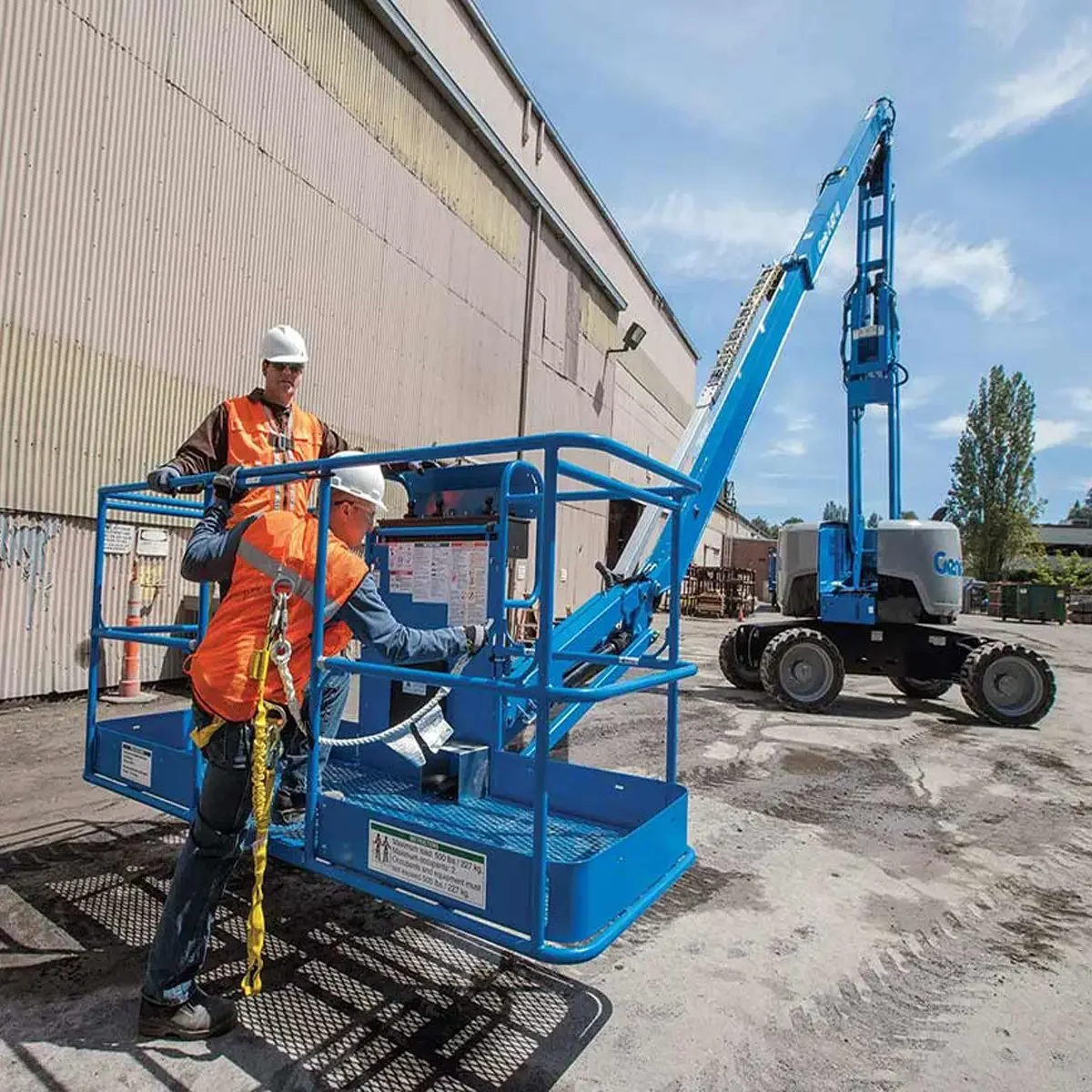

The Genie Z-62/40 and Z-62/40 TraX articulated boom lifts provide productive access across a wide range of elevated work environments. With a 20.87 m working height and 12.42 m outreach they allow operators to reach over obstacles with ease. The 227 kg platform capacity supports safe handling of tools and materials while the 1.52 m jib with 135° vertical rotation helps position the basket accurately for maintenance inspection and installation tasks. A 160° platform rotation and 360° continuous turntable movement improve control in tight or complex work areas. The standard 4WD system with active oscillating axles increases stability on rough ground and the TraX option enhances performance on soft or uneven surfaces. Compact stowed dimensions assist with transportation planning between projects.
Overview
- Full-time active oscillating axle helps maintain traction on rough terrain
- 4WD and 45% gradeability for superior terrainability
- Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
- 1.52 m (5 ft) articulating jib with a 135° vertical rotation to accurately position workers
- Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height
- Four-wheel steering and exclusive four independent points Genie TraX™ track drive system options
